Cable for motherboard restart

Introduction

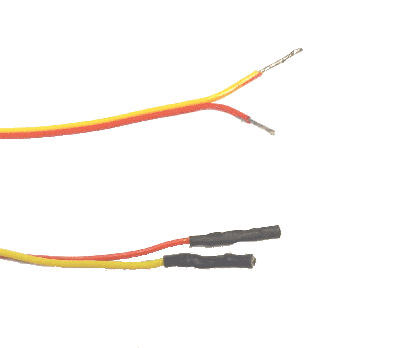

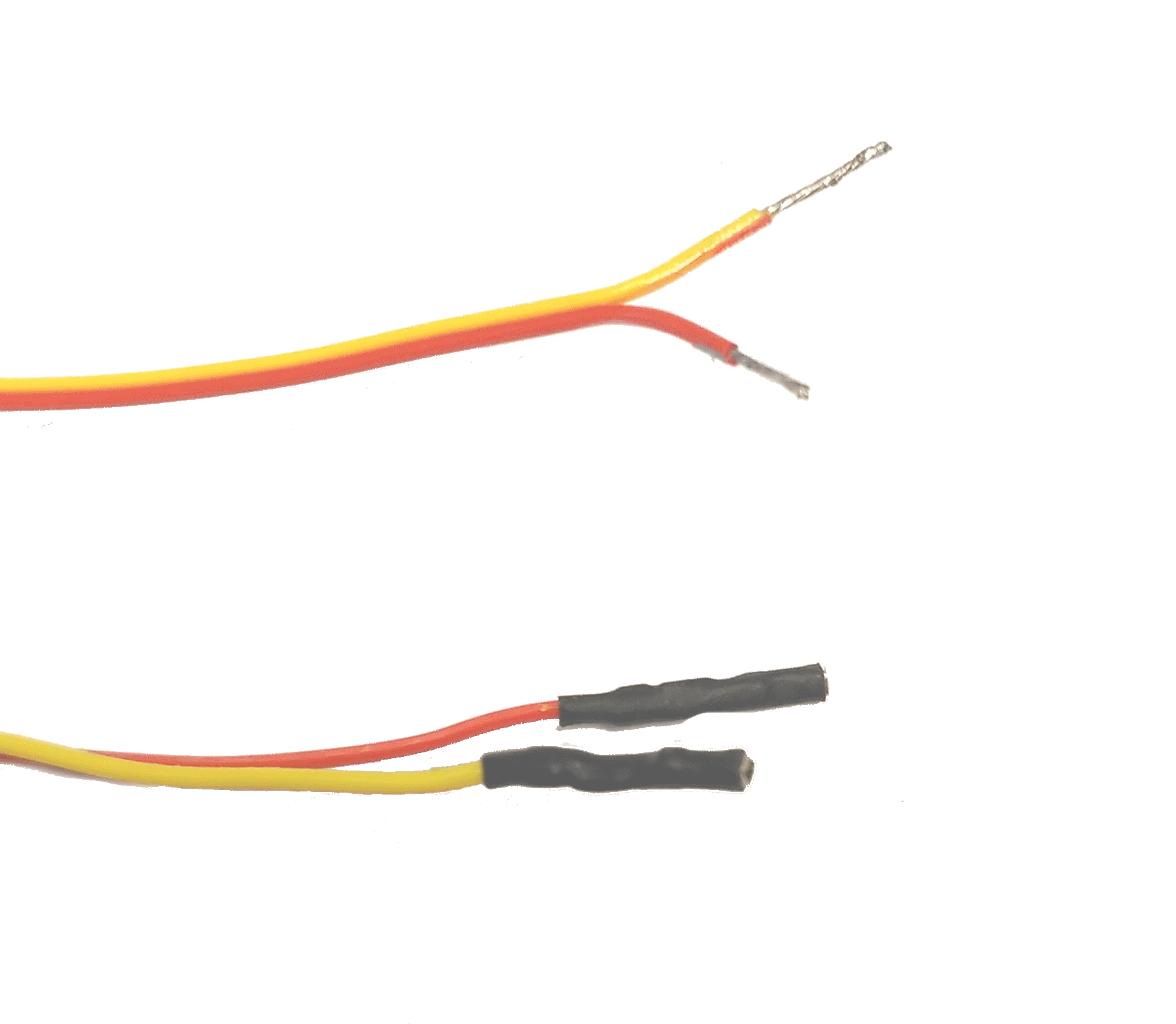

All NetControl device can be used to remotely reboot/power on-off motherboards. This is achieved by using one of NO relay outputs and this accessory cable. The crimped pins on cable's one end are suitable for inseting onany motherboard pin header.

Connection to NetControl

Use the soldered ends of cable to connect to NO (Normal Open) contact of one of NetControl's relay outputs. As additional option user can set up a Ping Monitoring group to allow reset of motherboard when ping to its network interface is lost (this mode needs the output of NetControl be configured in "Impulse" mode in IO Settings).

Technical parameters

ParameterValue
Cable length 1m
Number of wires 2
Cable end

One end with  crimped connector

Other end - soldered wire
