Introduction

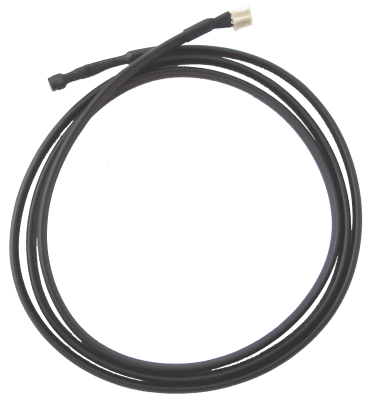

Temperature snesor TDS300 is specially designed for optimal work with devices from NetControl series concerning supply, range of measurement and accuracy.
It has a keyed connector for direct attachment to NetControl devices.
Technical parameters
| Parameter | Value |
|---|---|
| Power supply voltage | 2.3 - 5.5VDC |
| Working range | -15° - +70°C |
| Output voltage at 0°C | 500mV |
| Temperature coefficient | 10mV/°C |
| Accuracy | ±2°C (0° - 70°C), ±1°C typ. |
| Non-linearity | ±0.5°C |
| Response time (to 63%) | 1.65s |
| Load current | max. 100uA |
| Length of cable | ~2m |
| Connector type |
Cvilux CI01 (DU03) (3 terminal)
|
| Cable connections | +3.3V - white Ut - green GND - black(brown) |
