Introduction

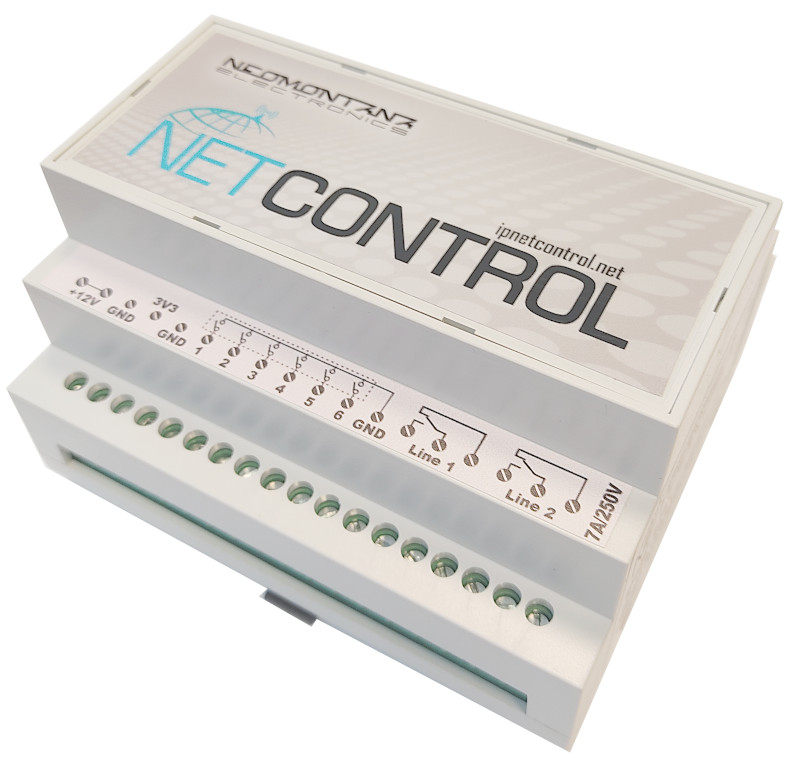

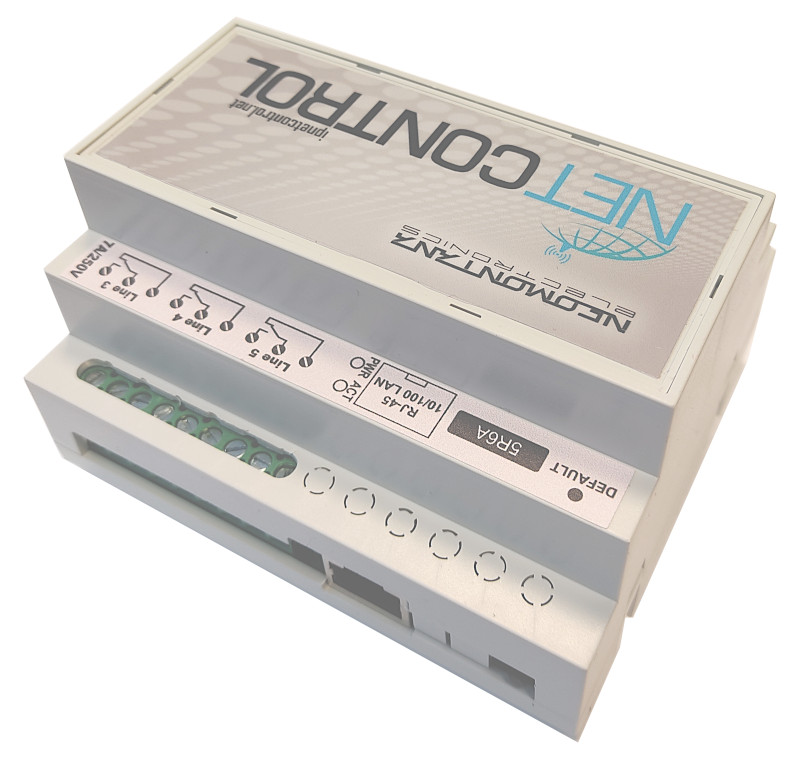

This model is equipped with a special housing for mounting on a standart DIN rail. 6 alarm inputs are available plus 5x relay SPDT outputs. All input-output circuits are accessible via screw terminals.
The model supports "Passive PoE In" - it can be powered with (11-15)VDC through the free pairs of the UTP cable: 4/5='+', 7/8='-'
You can open a comparison table of different models from here.

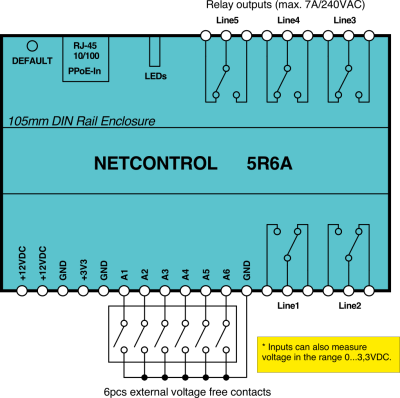

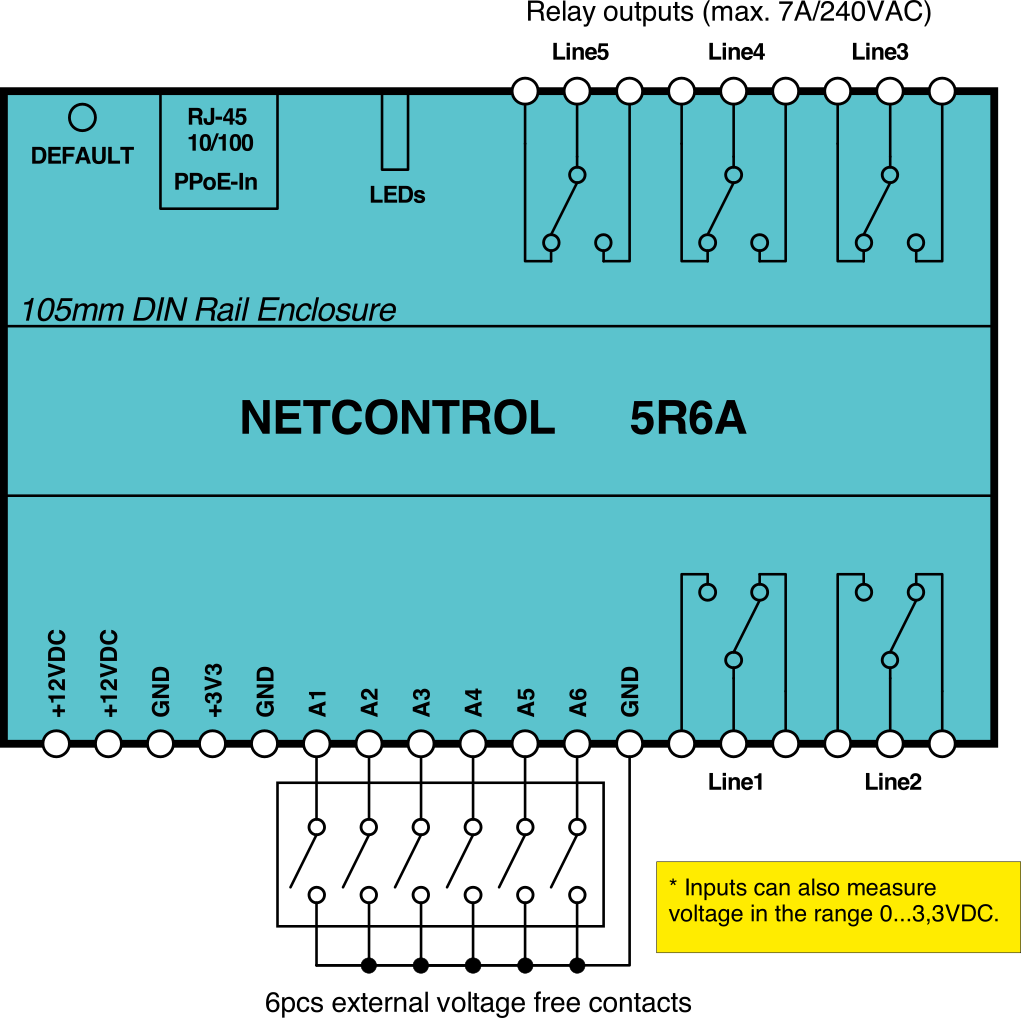

Input-output channels in NetControl 5R6A
- switch on-off/reboot (relay 5xSPDT) of up to 5 appliances for up to 7A/240VAC (with ability of automatic reboot on PING lost to 8 IP addressеs)

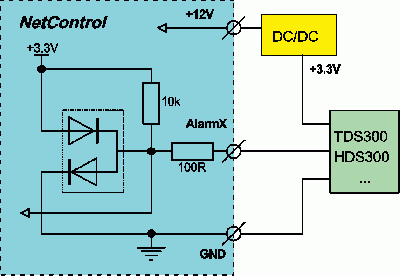

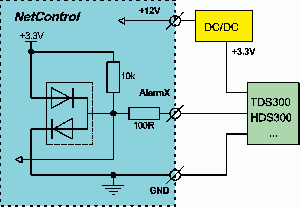

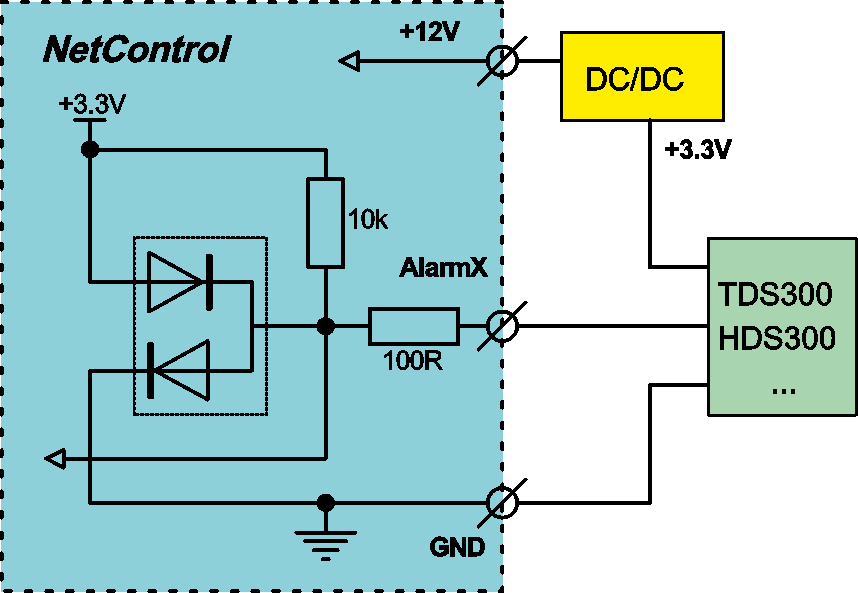

- 6 alarm inputs for mechanical contact/button or AC voltage detector VDS300 for signalization (SNMP trap,MQTT, SPC Cloud) of events. Other sensors also possible to connect here, as inputs are analog type.
- Housing made of light gray ABS V0 (self-extinguishing); dimensions 105x65x90mm
Basic functions and network protocols supported
- 10/100 BASE-T Ethernet (Auto MDI/MDIX) with differential overvoltage surge protections
- Supported protocols ARP/DHCP/ICMP/TCP/IP/SNTP/SNMP/TFTP client/WEB server/MQTT/SPC Cloud
- 802.1q VLAN support
- SNMPv1 (ONLY snmpget/snmpset) protocol for access to all parameters and functions
- SNMP traps and MQTT events generation on input change
- Flexible user-defined system of sequences of actions (Macros)
- Start of macros on analog input change (Automation)
- Start of Macros on PING lost to IP addresses (PING monitor)
- Real-time software clock (RTC) with the ability to start Macros at user-defined time
- WEB access to all parameters and functions
- TFTP client for firmware update
- Firmware update in Web interface
Applications
- "House/Room Controller" for hotels, guest houses, etc.
- Automation systems with remote access via the Internet
- IP alarm system, such as panic buttons in hotels or security of telecommunication cabinets.
- restart (automatically in case of PING loss / manually) of network equipment (routers, ADSL modems, servers, etc.)
- general purpose 5 channel relay module with Web/SNMP/MQTT/SPC Cloud/ModbusTCP control
Application notes
User manual, specs and SNMP MIB
Latest firmware image (also publicly available by TFTP at 84.40.112.77)
IMPORTANT! Before updating, please read "FirmwareRevisionHistory.txt" from archive for information on how the new version will affect your current settings!
Software releases with special functions
Please, read the supplied documents before usage!
Firmware "ModbusMaster"
