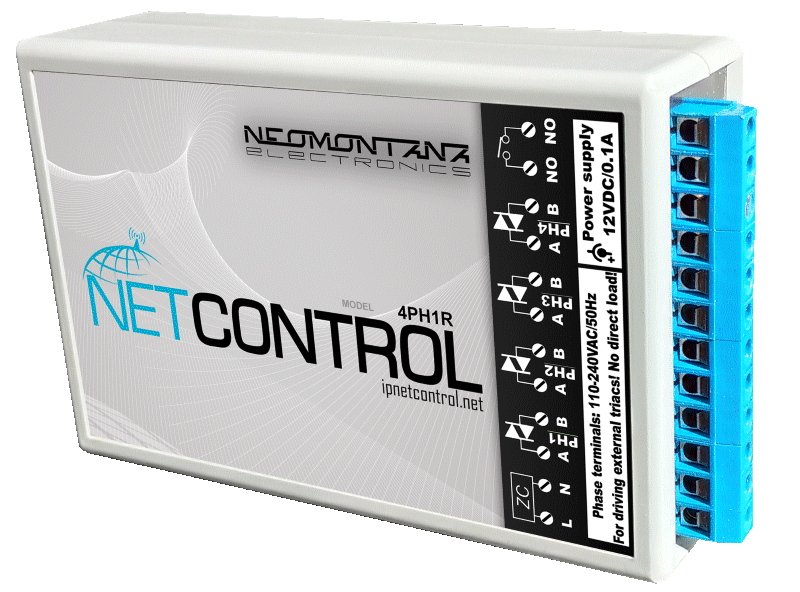

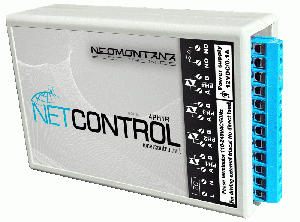

NetControl 4PH1R



Important note! This is not a stock model. If you have interest on it please, contact us for details!



Introduction

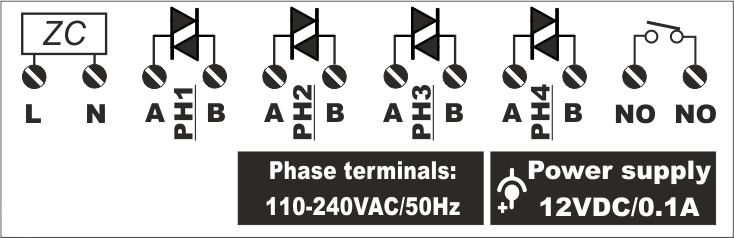

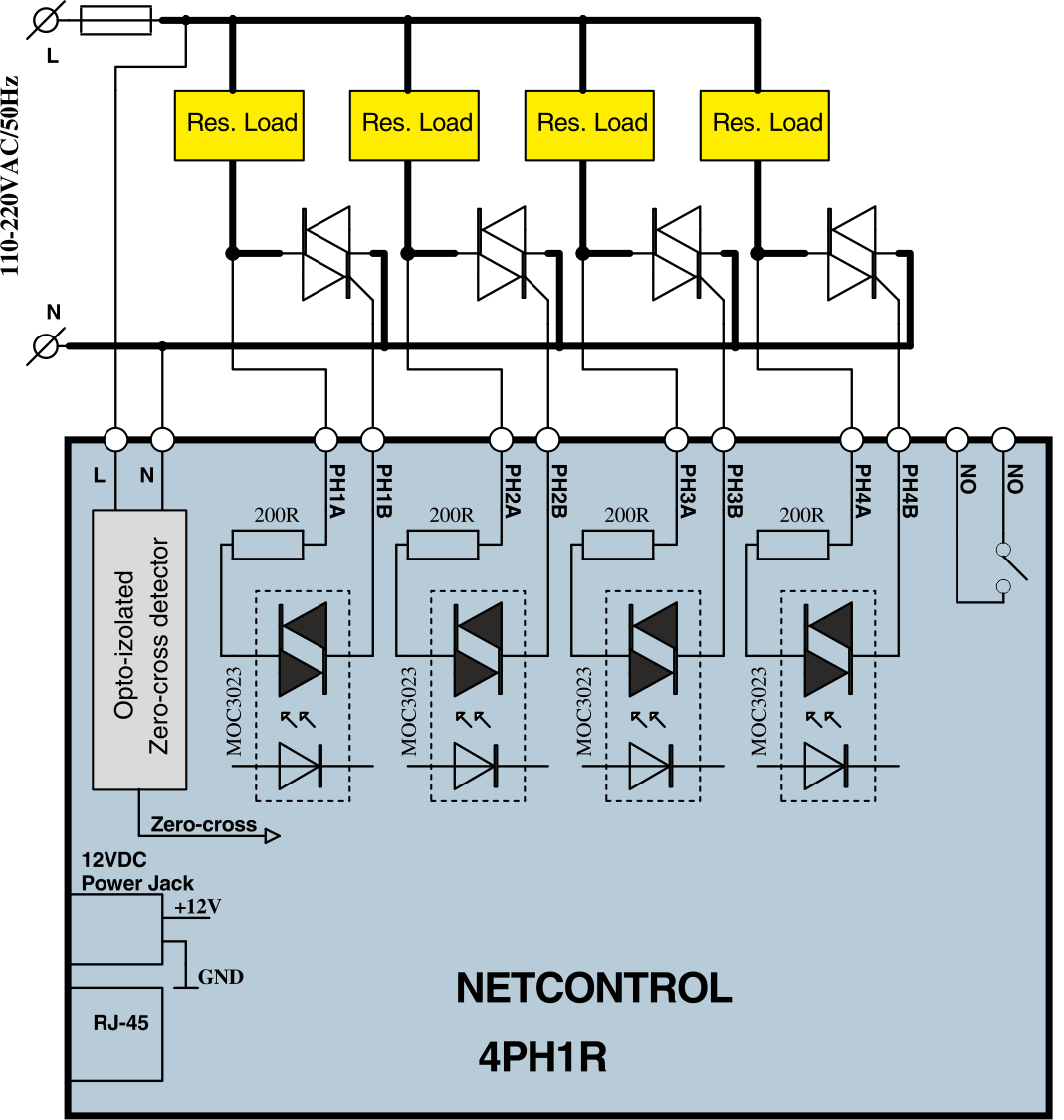

This NetControl model includes 4 channel phase regulator (for driving external power triacs) for loads in the range 110-240VAC/50Hz. Device's outputs are triacs from MOC3023.

Additionally there is on normal open relay contact available (up to 7A/240VAC).


Basic network function (for more see user manual)

  • 10 BASE-T Ethernet (NO CrossOver Autodetect);

  • Supported protocols ARP/DHCP/ICMP/TCP/IP/SNMP/TFTP client/WEB server

  • 802.1q VLAN support

  • SNMPv1 (ONLY snmpget/snmpset) protocol for access to all parameters and functions;

  • SNMP traps generation on input change;

  • Output signal generation on analog input change;

  • WEB access to all parameters and functions;

  • TFTP client for firmware update



Applications

  • Phase regulation of loads - lighting systems, heating devices etc.
  • Web/SNMP relay (one channel)





User manual and most recent firmware for NetControl

um iconUser Manual, SNMP MIB

NetControl Series_UM-2.21_en.pdf (07.2020) (Only for firmware 5.12+)

NetControl SNMP MIB v1.5 (11.2019)

firmwareLatest firmware image (also publicly available by TFTP at IP address 84.40.112.77)
IMPORTANT! Before updating, please read FirmwareRevisionHistory.txt file from archive
for information on how the new version will affect your current settings!

Firmware v5.31.zip (01.2021)



Archives for old hardware version (3.xx)

NetControl Series_UM-2.13_en.pdf
Firmware v3.17.zip (11.2017)



Application notes and example codes for integration of NetControl to different software systems.

php-logoControl and access NetControl with PHP (with SNMP and HTTP requests) new-icon

netcontrol-php.zip (10.2019)



logo domoticzNode-RED flow for integrating NetControl and Domoticz (MQTT)

NetControl<->Domoticz Node-RED Flow (v2.1 updated 05.2020)



zabbix availableHost template for integration in Zabbix (SNMP)

NetControl HostTemplate for Zabbix (02.2018)



cactiHost template for integration in Cacti (SNMP)

NetControl HostTemplate for Cacti (02.2018)

logo pythonStoring alarm events to MySQL with Python code (MQTT) new-icon

netcontrol_mqtt2mysql.zip (02.2020)
